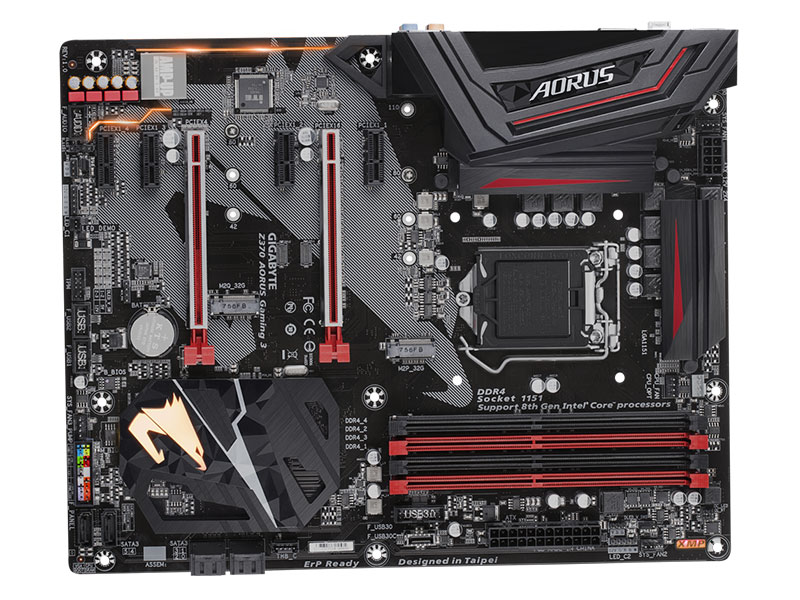

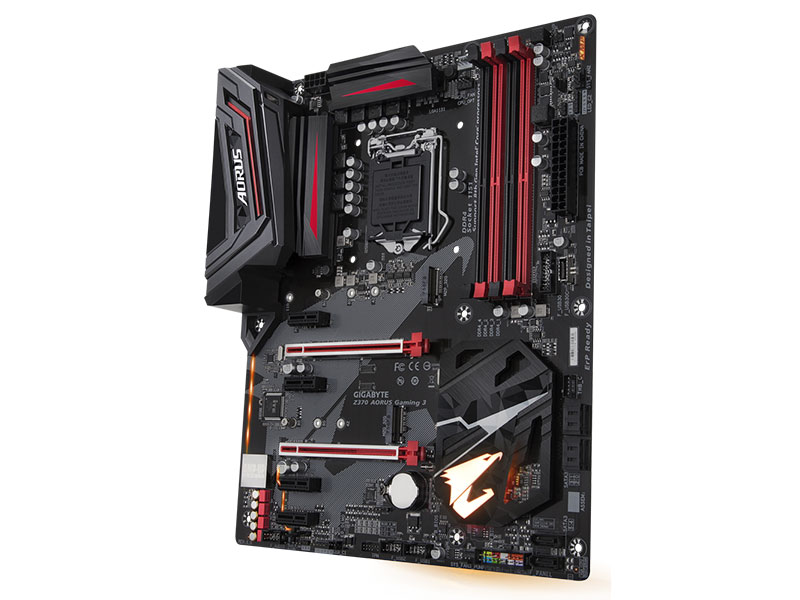

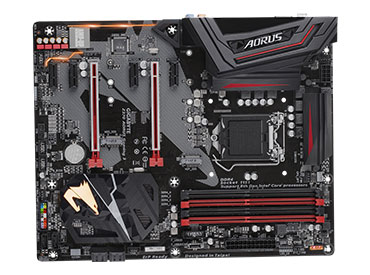

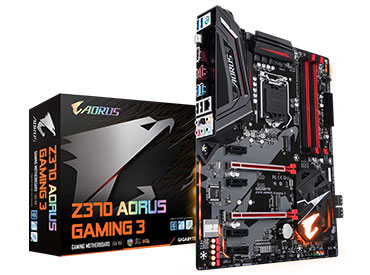

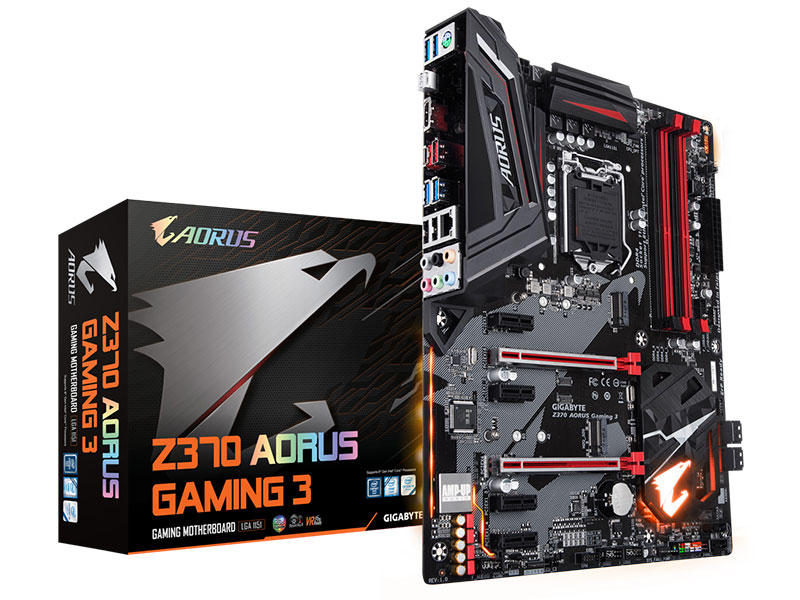

Mother Gigabyte Z370 AORUS Gaming 3 Socket 1151

  • $ 8.853,00
  • 3 Años de Garantía
Cantidad:

Tarjetas de crédito

    Banco:

    Otros medios

      Marca: Gigabyte
      Modelo: Z370 AORUS Gaming 3 (rev. 1.0)
      Socket: Intel® Socket 1151
      Chipset: Intel® Z370 Express
      Soporte de Procesadores:
      - Intel® de 8va generación: Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®

      Características Principales:
      - Supports 8th Gen Intel® Core™ Processors
      - Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
      - Intel® Optane™ Memory Ready
      - ASMedia 3142 USB 3.1 Gen2 with USB Type-C™ and Type-A
      - Front USB 3.1 Gen 1 Type-C™ Header
      - Multi-Way Graphics Support with PCIe Armor and Ultra Durable™ Design
      - ALC1220 120dB SNR HD Audio with Smart Headphone AMP and WIMA audio capacitors
      - Killer™ E2500 Gaming Network
      - RGB FUSION with Multi-Zone Digital LED Light Show design, support digital LED & RGB LED strips
      - Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
      - Dual Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
      - Anti-Sulfur Resistors Design
      - Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
      - Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
      - APP Center Including EasyTune™ and Cloud Station™ Utilities

      Memoria:
      4 x DDR4 DIMM, Max. 64GB
      Soporte para módulos de memoria DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz
      Soporte para módulos de memoria ECC UDIMM 1Rx8/2Rx8 (operate in non-ECC mode)
      Soporte para módulos de memoria non-ECC UDIMM 1Rx8/2Rx8/1Rx16
      Arquitectura de memoria Dual Channel
      Compatible con Intel® Extreme Memory Profile (XMP)

      Gráficos:
      Integrated Graphics Processor-Intel® HD Graphics support:
      - 1 x HDMI port supporting a maximum resolution of 4096x2160@30 Hz
      * Support for HDMI 1.4 version and HDCP 2.2.
      Máxima memoria compartida: 1 GB

      Audio:
      Realtek® ALC1220 codec
      High Definition Audio
      2/4/5.1/7.1-channel
      Support for S/PDIF Out

      LAN:
      Rivet Networks Killer™ E2500 LAN chip (10/100/1000 Mbit)

      Puertos de expansión:
      - 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      - 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      - 4 x PCI Express x1 slots
      * The PCIEX4 slot shares bandwidth with the PCIEX1_2, 3, 4 slots. The PCIEX4 slot operates at up to x1 mode when the PCIEX1_2, 3, or 4 slot is populated.
      (Todos los slots PCI Express conforman el estandar PCI Express 3.0.)

      Almacenamiento:
      Chipset:
      1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_32G)
      1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support)(M2Q_32G)
      6 x SATA 6Gb/s
      Soporta Raid 0, 1, 5, 10
      Intel® Optane™ Memory Ready

      Tecnología Multi-Gráficos:
      Soporte para AMD Quad-GPU CrossFire™ y 2-Way AMD CrossFire™ technologies

      USB:
      Chipset+ASMedia® USB 3.1 Gen 2 Controller:
      1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
      1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
      Chipset:
      1 x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header
      6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
      6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

      Características Especiales:

      Soporte para APP Center:
      3D OSD
      @BIOS
      AutoGreen
      BIOS Setup
      Color Temperature
      Cloud Station
      EasyTune
      Easy RAID
      Fast Boot
      Game Boost
      ON/OFF Charge
      Platform Power Management
      RGB Fusion
      Smart Backup
      Smart Keyboard
      Smart TimeLock
      Smart HUD
      System Information Viewer
      USB Blocker
      V-Tuner
      Soporte para Q-Flash
      Soporte para Xpress Install

      Soporte Sistema Operativo:
      Windows® 10 64-bit

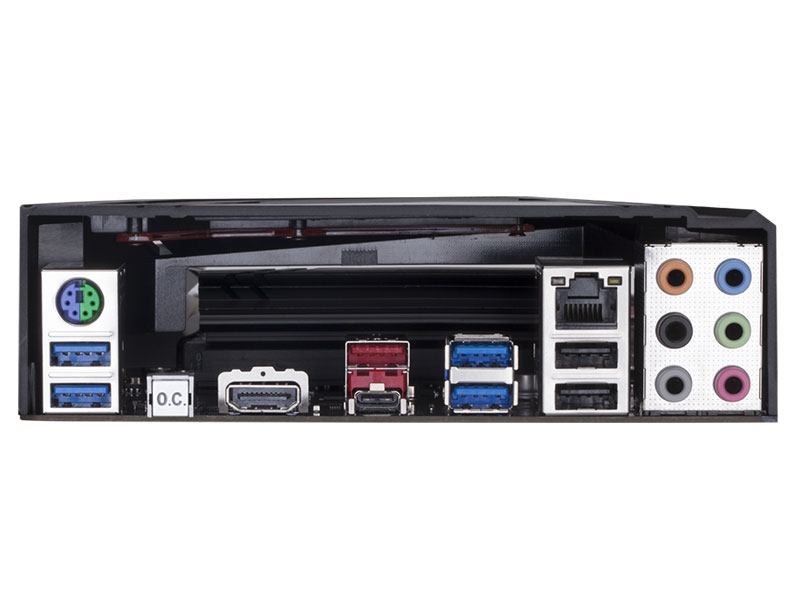

      Conectores:
      1 x PS/2 keyboard/mouse port
      1 x OCSW button
      1 x HDMI port
      1 x USB Type-C™ port, with USB 3.1 Gen 2 support
      1 x USB 3.1 Gen 2 Type-A port (red)
      4 x USB 3.1 Gen 1 ports
      2 x USB 2.0/1.1 ports
      1 x RJ-45 port
      6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

      Tamaño:
      ATX Form Factor
      30.5cm x 24.4cm

      BIOS:
      2 x 128 Mbit flash
      Use of licensed AMI UEFI BIOS
      Support for DualBIOS™
      PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

      Incluye:
      User's manual
      I/O Shield
      4 x SATA 6Gb/s cable(s)
      Motherboard driver disk
      Quick Installation Guide

      Garantía: 36 Meses
