Marca: Gigabyte
Modelo: Z370 AORUS Ultra Gaming (rev. 1.0)
Socket: Intel® Socket 1151
Chipset: Intel® Z370 Express
Soporte de Procesadores:
- Intel® de 8va generación: Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®

Características Principales:
- Supports 8th Gen Intel® Core™ Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Intel® Optane™ Memory Ready
- ASMedia 3142 USB 3.1 Gen2 with USB Type-C™ and Type-A
- Front USB 3.1 Gen 1 Type-C™ Header
- Multi-Way Graphics Support with PCIe Armor and Ultra Durable™ Design
- ALC1220 120dB SNR HD Audio with Smart Headphone AMP and WIMA audio capacitors
- Intel GbE LAN Gaming Network with cFosSpeed Internet Accelerator Software
- RGB FUSION with Multi-Zone Digital LED Light Show design, support digital LED & RGB LED strips
- Swappable Overlay for Accent LED
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- Dual Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
- USB DAC-UP 2 with Adjustable Voltage
- Anti-Sulfur Resistors Design
- Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
- Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
- APP Center Including EasyTune™ and Cloud Station™ Utilities

Memoria:
4 x DDR4 DIMM, Max. 64GB
Soporte para módulos de memoria DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz
Soporte para módulos de memoria ECC UDIMM 1Rx8/2Rx8 (operate in non-ECC mode)
Soporte para módulos de memoria non-ECC UDIMM 1Rx8/2Rx8/1Rx16
Arquitectura de memoria Dual Channel
Compatible con Intel® Extreme Memory Profile (XMP)

Gráficos:
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x DVI-D port supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
- 1 x HDMI port supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Máxima memoria compartida: 1 GB

Audio:
Realtek® ALC1220 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN:
Intel® GbE LAN chip (10/100/1000 Mbit)

Puertos de expansión:
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- 1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
- 1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the PCIEX1_2 and PCIEX1_3 slots. When the PCIEX1_2 or PCIEX1_3 slot is populated, the PCIEX4 slot will operate at up to x1 mode.
- 3 x PCI Express x1 slots
(Todos los slots PCI Express conforman el estandar PCI Express 3.0.)

Almacenamiento:
Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_32G)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_32G)
6 x SATA 6Gb/s
Soporta Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready

Tecnología Multi-Gráficos:
Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies

USB:
Chipset+ASMedia® USB 3.1 Gen 2 Controller:
1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
Chipset:
1 x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header
6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Características Especiales:

Soporte para APP Center:
3D OSD
@BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
USB DAC-UP 2
V-Tuner
Soporte para Q-Flash
Soporte para Xpress Install

Soporte Sistema Operativo:
Windows® 10 64-bit

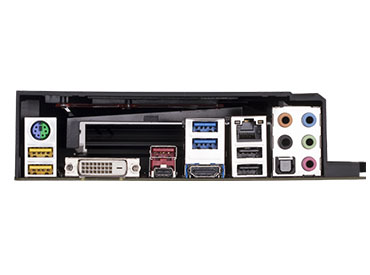

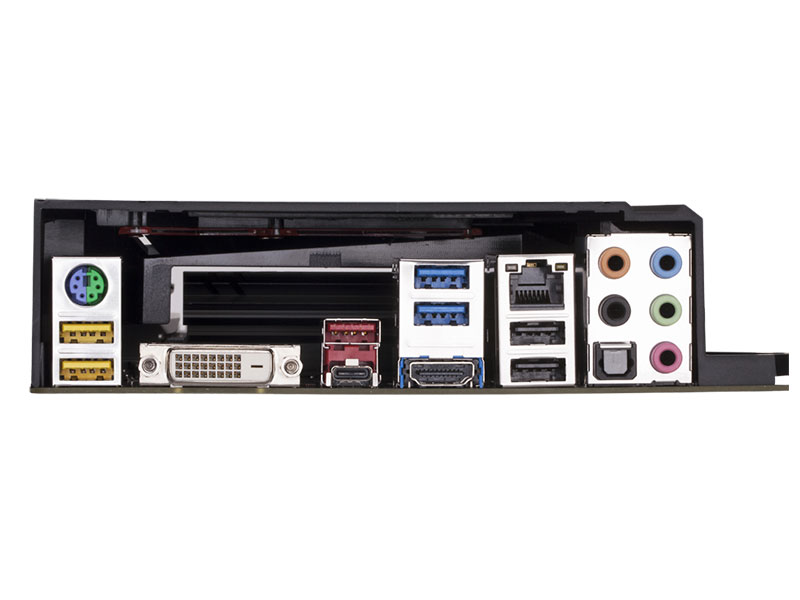

Conectores:
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red)
4 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

Tamaño:
ATX Form Factor
30.5cm x 24.4cm

BIOS:
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

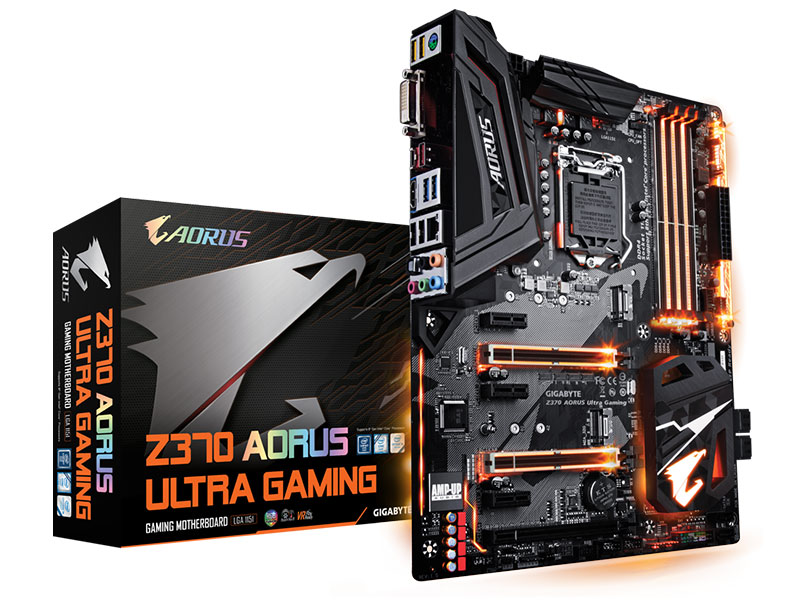

Incluye:
User's manual
I/O Shield
4 x SATA 6Gb/s cable(s)
Motherboard driver disk
Quick Installation Guide

Garantía: 36 Meses
