Mother Gigabyte Z390 AORUS ULTRA Socket 1151

Mother Gigabyte Z390 AORUS ULTRA Socket 1151

Momentaneamente este producto
no esta disponible.
Tenemos mas opciones similares para vos!

VER PRODUCTOS
SIMILARES

Tarjetas de crédito

    Banco:

    Otros medios

      Marca: Gigabyte
      Modelo: Z390 AORUS ULTRA (rev. 1.0)
      Socket: Intel® Socket 1151
      Chipset: Intel® Z390 Express
      Soporte de Procesadores:
      - Intel® de 9na y 8va generación: Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®

      Características Principales:
      - Soporte para procesadores intel® Core™ de 9°. y 8°. Gen.
      - DDR4 de doble canal, Non-ECC Unbuffered, 4 DIMM
      - Lista para memoria Intel® Optane™
      - Solution Digital en Fases 12+1 VRM IR con DrMOS
      - Diseño Térmico Avanzado con Direct Touch Heatpipe
      - Wi-Fi Integrado Intel® CNVi 802.11ac 2x2 Wave 2
      - ALC1220-VB Mejorado 114dB (trasero) / 110dB (delantero) SNR en micrófono con capacitores de audio WIMA
      - Intel® Gigabit LAN con cFosSpeed
      - RGB FUSION 2.0 con diseño Multi-Zone Addressable LED Light Show, compatible con tiras de LED Direccionables y RGB
      - Smart Fan 5 cuenta con varios sensores de temperatura y cabezales de ventilador híbridos con FAN STOP
      - Cabezal frontal USB 3.1 Gen. 2 Tipo-C™
      - Triple M.2, Ultra-Rápido con interfaz PCIe Gen3 x4 con triple protección térmica
      - USB DAC-UP 2 con voltaje ajustable
      - Listo para CEC 2019, ahorre energía tan fácil como con un solo clic
      - Soporte de gráficos de múltiples vías con doble armadura y diseño Ultra Durable™

      Memoria:
      4 x DDR4 DIMM, Max. 128GB (32GB single DIMM capacity)
      Soporte para módulos de memoria DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz
      Soporte para módulos de memoria ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode)
      Soporte para módulos de memoria non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
      Arquitectura de memoria Dual Channel
      Compatible con Intel® Extreme Memory Profile (XMP)

      Gráficos:
      Integrated Graphics Processor-Intel® HD Graphics support:
      - 1 x HDMI port supporting a maximum resolution of 4096 x 2160 @ 30 Hz
      * Soporte para HDMI 1.4 y HDCP 2.2.
      Máxima memoria compartida: 1 GB

      Audio:
      Realtek® ALC1220-VB codec
      High Definition Audio
      2/4/5.1/7.1-channel
      Support for S/PDIF Out

      LAN:
      Intel® GbE LAN chip (10/100/1000 Mbit)

      Wireless Communication module:
      Intel® CNVi interface Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
      BLUETOOTH 5
      Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate

      Puertos de expansión:
      - 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      - 1 x PCI Express x16 slot, running at x8 (PCIEX8)
      - 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      - 3 x PCI Express x1 slots
      (Todos los slots PCI Express conforman el estandar PCI Express 3.0.)
      - 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)

      Almacenamiento:
      Chipset:
      1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M)
      1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)
      1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P)
      6 x SATA 6Gb/s connectors
      Soporta Raid 0, 1, 5, 10
      Intel® Optane™ Memory Ready

      Tecnología Multi-Gráficos:
      Soporte para NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
      Soporte para AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies

      USB:
      Chipset:
      1 x USB Type-C™ port with USB 3.1 Gen 2 support, available through the internal USB header
      1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
      3 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
      4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
      Chipset+2 USB 2.0 Hubs:
      8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

      Características Especiales:

      Soporte para APP Center:
      3D OSD
      @BIOS
      AutoGreen
      Cloud Station
      EasyTune
      Easy RAID
      Fast Boot
      Game Boost
      ON/OFF Charge
      Platform Power Management
      RGB Fusion
      Smart Backup
      Smart Keyboard
      Smart TimeLock
      Smart HUD
      Smart Survey
      System Information Viewer
      USB Blocker
      USB DAC-UP 2
      Soporte para Q-Flash
      Soporte para Xpress Install

      Soporte Sistema Operativo:
      Windows® 10 64-bit

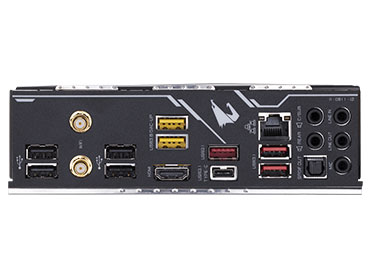

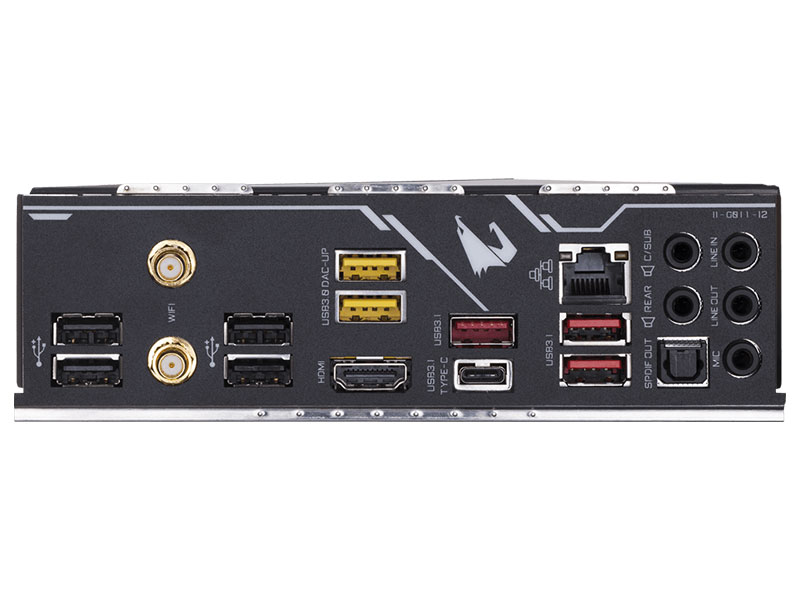

      Conectores:
      1 x HDMI port
      1 x USB Type-C™ port, with USB 3.1 Gen 2 support
      3 x USB 3.1 Gen 2 Type-A ports (red)
      2 x USB 3.1 Gen 1 ports
      4 x USB 2.0/1.1 ports
      1 x RJ-45 port
      2 x SMA antenna connectors (2T2R)
      1 x optical S/PDIF Out connector
      5 x audio jacks

      Tamaño:
      ATX Form Factor
      30.5cm x 24.4cm

      BIOS:
      2 x 128 Mbit flash
      Use of licensed AMI UEFI BIOS
      Support for DualBIOS™
      PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

      Incluye:
      User's manual
      I/O Shield
      SATA 6Gb/s cable(s)
      Motherboard driver disk
      Quick Installation Guide

      Garantía: 36 Meses
