Marca: Gigabyte
Modelo: Z590 AORUS ELITE (rev 1.0)
Socket: Intel® Socket 1200
Chipset: Intel® Z590 Express
Soporte de Procesadores:
- Intel® 11ᵃ generación: Intel® Core™ i9 / Intel® Core™ i7 / Intel® Core™ i5
- Intel® 10ᵐᵃ generación: Intel® Core™ i9 / Intel® Core™ i7 / Intel® Core™ i5 / Intel® Core™ i3 / Intel® Pentium® / Intel® Celeron®*
* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.

Memoria:
- Procesadores Intel® Core™ i9/i7/i5 11ᵃ generación:
Soporte para módulos de memoria DDR4 5400 (O.C) / DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
- Procesadores Intel® Core™ i9/i7 10ᵐᵃ generación:
Soporte para módulos de memoria DDR4 2933/2666/2400/2133 MHz
- Procesadores Intel® Core™ i5/i3/Pentium®/Celeron® 10ᵐᵃ generación:
Soporte para módulos de memoria DDR4 2666/2400/2133 MHz
- 4 x DDR4 DIMM, Max. 128GB (32 GB single DIMM capacity)
- Arquitectura de memoria Dual Channel
- Soporte para módulos de memoria ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode)
- Soporte para módulos de memoria non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
- Soporte para módulos de memoria Extreme Memory Profile (XMP)

Gráficos:
Gráficos integrados en el CPU (Soporte para Intel® HD Graphics)
- 1x DisplayPort con una resolución máxima de 4096 x 2304 @ 60 Hz
* Soporte para DisplayPort 1.2 y HDCP 2.3.

Puertos de expansión:
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note)
- 1 x PCI Express x16 slot, running at x4 (PCIEX4)
- 1 x PCI Express x1 slot
(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
(Note) Supported by 11th Generation processors only.

Tecnología Multi-Gráficos:
- Soporte para AMD Quad-GPU CrossFire™ y 2-Way AMD CrossFire™ technologies

Almacenamiento:
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2B_SB)
- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
- 6 x SATA 6Gb/s connectors
- Soporte para SATA RAID 0, RAID 1, RAID 5 y RAID 10
- Intel® Optane™ Memory Ready
*Supported by 11th Generation processors only.

LAN:
- Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Audio:
- Realtek® ALC1220-VB codec
* The back panel line out jack supports DSD audio
- Audio de alta definición
- 2/4/5.1/7.1-channel
- Soporte para S/PDIF Out

USB:
Chipset:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 2 x USB 3.2 Gen2 Type-A ports (red) on the back panel
- 5 x USB 3.2 Gen1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hub:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Características Especiales:

- Soporte para APP Center:
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
- Soporte para Q-Flash Plus
- Soporte para Q-Flash
- Soporte para Xpress Install

Soporte Sistema Operativo:
- Windows 10 64-bit

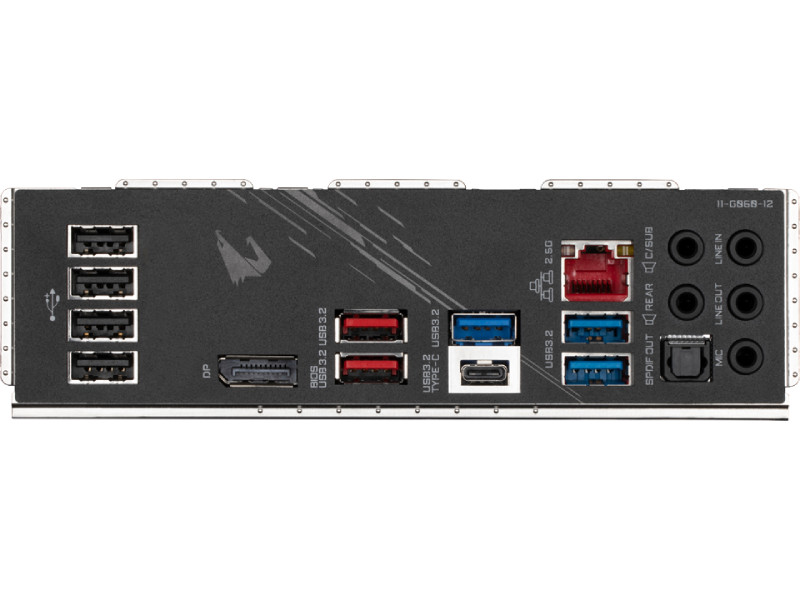

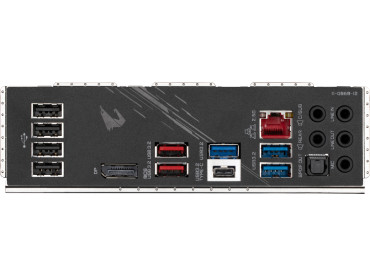

Conectores:
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x DisplayPort
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks

Conectores Internos de E/S:
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip header
2 x RGB LED strip header
6 x SATA 6Gb/s connectors
3 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen1 header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
2 x Thunderbolt™ add-in card connectors
1 x Clear CMOS jumper
1 x Q-Flash Plus button

Tamaño:
ATX Form Factor
30.5cm x 24.4cm

BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Incluye:
User's manual
Quick Installation Guide
M.2 screws
4 x SATA 6Gb/s cable(s)
One G Connector

Garantía: 36 Meses
