Mother Gigabyte Z590 UD Socket 1200

  • $ 32.968,00
  • 3 Años de Garantía
Cantidad:

Tarjetas de crédito

    Banco:

    Otros medios

      Marca: Gigabyte
      Modelo: Z590 UD (rev 1.0)
      Socket: Intel® Socket 1200
      Chipset: Intel® Z590 Express
      Soporte de Procesadores:
      - Intel® 11ᵃ generación: Intel® Core™ i9 / Intel® Core™ i7 / Intel® Core™ i5
      - Intel® 10ᵐᵃ generación: Intel® Core™ i9 / Intel® Core™ i7 / Intel® Core™ i5 / Intel® Core™ i3 / Intel® Pentium® / Intel® Celeron®

      Memoria:
      - Procesadores Intel® Core™ i9/i7/i5 11ᵃ generación:
      Soporte para módulos de memoria DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
      - Procesadores Intel® Core™ i9/i7 10ᵐᵃ generación:
      Soporte para módulos de memoria DDR4 2933/2666/2400/2133 MHz
      - Procesadores Intel® Core™ i5/i3/Pentium®/Celeron® 10ᵐᵃ generación:
      Soporte para módulos de memoria DDR4 2666/2400/2133 MHz
      - 4 x DDR4 DIMM, Max. 128GB (32 GB single DIMM capacity)
      - Arquitectura de memoria Dual Channel
      - Soporte para módulos de memoria ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode)
      - Soporte para módulos de memoria non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
      - Soporte para módulos de memoria Extreme Memory Profile (XMP)

      Gráficos:
      Gráficos integrados en el CPU (Soporte para Intel® HD Graphics)
      - 1x DisplayPort con una resolución máxima de 4096 x 2304 @ 60 Hz
      * Soporte para DisplayPort 1.2 y HDCP 2.3.

      Puertos de expansión:
      - 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note)
      - 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      - 2x PCI Express x1 slots
      (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
      (Note) Supported by 11th Generation processors only.

      Tecnología Multi-Gráficos:
      - Soporte para AMD Quad-GPU CrossFire™ y 2-Way AMD CrossFire™ technologies

      Almacenamiento:
      CPU:
      - 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4 SSD support) (M2P_CPU)(Note)
      Chipset:
      - 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
      - 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB)
      - 5 x SATA 6Gb/s connectors
      - Soporte para SATA RAID 0, RAID 1, RAID 5 y RAID 10
      - Intel® Optane™ Memory Ready
      (Note) Supported by 11th Generation processors only.

      LAN:
      - Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

      Audio:
      - Realtek® audio CODEC
      - Audio de alta definición
      - 2/4/5.1/7.1-channel
      - Soporte para S/PDIF Out

      USB:
      Chipset:
      - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
      - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
      - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
      Chipset+2 USB 2.0 Hubs:
      - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

      Características Especiales:

      - Soporte para APP Center:
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
      - Soporte para Q-Flash Plus
      - Soporte para Q-Flash
      - Soporte para Xpress Install

      Soporte Sistema Operativo:
      - Windows 10 64-bit

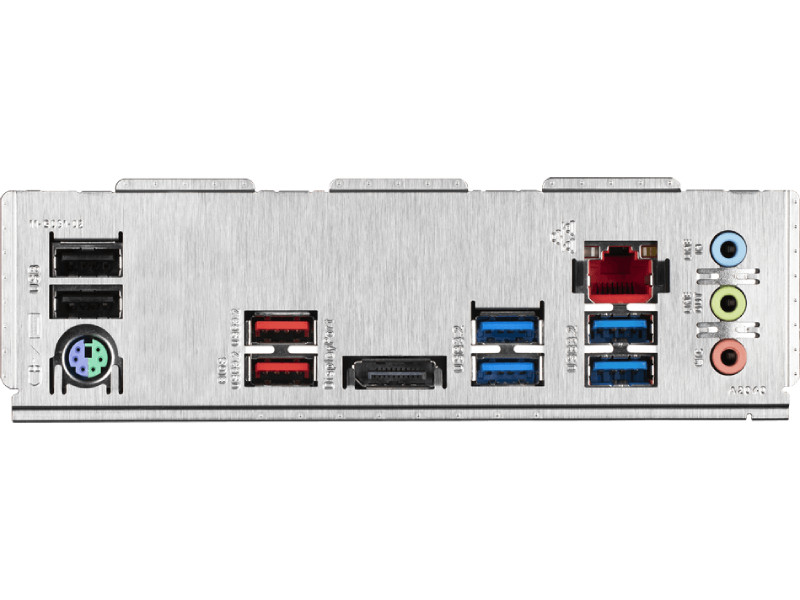

      Conectores:
      1 x PS/2 keyboard/mouse port
      1 x DisplayPort
      2 x USB 3.2 Gen 2 Type-A ports (red)
      4 x USB 3.2 Gen 1 ports
      2 x USB 2.0/1.1 ports
      1 x RJ-45 port
      3 x audio jacks (Line In, Line Out, Mic In)

      Conectores Internos de E/S:
      1 x 24-pin ATX main power connector
      1 x 8-pin ATX 12V power connector
      1 x 4-pin ATX 12V power connector
      1 x CPU fan header
      4 x system fan headers
      2 x addressable LED strip header
      2 x RGB LED strip header
      1 x Q-Flash Plus button
      5 x SATA 6Gb/s connectors
      3 x M.2 Socket 3 connectors
      1 x front panel header
      1 x front panel audio header
      1 x S/PDIF Out header
      1 x USB 3.2 Gen 1 header
      1 x USB Type-C® header, with USB 3.2 Gen 1 support
      2 x USB 2.0/1.1 headers
      1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
      2 x Thunderbolt™ add-in card connectors
      1 x serial port header
      1 x Clear CMOS jumper

      Tamaño:
      ATX Form Factor
      30.5cm x 24.4cm

      BIOS:
      1 x 256 Mbit flash
      Use of licensed AMI UEFI BIOS
      PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

      Incluye:
      User's manual
      M.2 screws
      2 x SATA 6Gb/s cable(s)
      Motherboard driver disk

      Garantía: 36 Meses
