Marca: MSI
Modelo: 970A-G43

SOPORTE DE PROCESADORES:
AMD® FX, Phenom II X6/X4/X3/X2, Athlon II X4/X3/X2 and Sempron CPU in AM3 / AM3+ package.

CHIPSET:
North Bridge: AMD 970
South Bridge: AMD SB950

MEMORIA DEL SISTEMA:
4 x sockets 1.5V DDR3 DIMM que admiten hasta 32 GB de memoria del sistema
Arquitectura de memoria Dual Channel
Soporte para módulos de memoria DDR3 1066/1333/1600/1866/2133*(*OC)

SLOTS DE EXPANSIÓN:
2 x PCI Express 2.0 x16 slots
2 PCI Express 2.0 x1 slots
2 PCI slots, support 3.3V/ 5V PCI bus Interface.

SATA:
Soporte de RAID 0, RAID 1, RAID5, RAID 10 y JBOD
6 x conector SATA 6Gb/s soportando un dispositivo SATA 6Gb/s cada uno
SATA III 1~6 support RAID 0/1/5/10 mode by AMD® SB950

AUDIO:
Chipset integrated HD audio codecby Realtek® ALC887
Flexible 8-channel audio with jack sensing
Compliant with Azalia 1.0 Spec

LAN ONBOARD:
Realtek PCI-E GbLAN controller 8111E
Integrated Fast Ethernet MAC and PHY in single chip
Supports 10Mb/s, 100Mb/s and 1000Mb/s
Compliance with PCI-Express Bus specification v1.0a

USB:
2x USB 3.0 rear I/O ports & 1x USB 3.0 onboard connector by RENESAS UPD720202

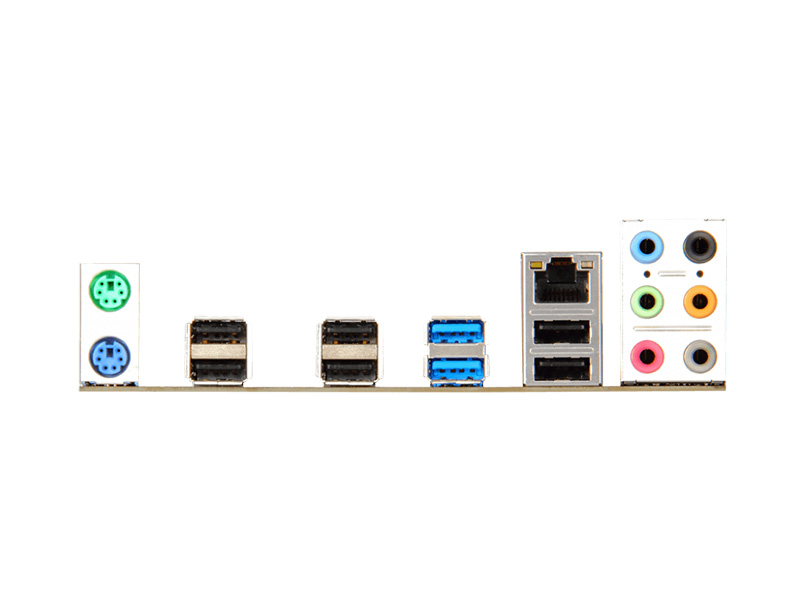

Panel Trasero de Conectores de E/S:
1 x PS/2 Keyboard
1 x PS/2 Mouse port
6 x USB 2.0 ports
2 x USB 3.0 ports (blue)
1 x LAN jack
1 x 6 in 1 audio jack

Conectores Internos E/S:
1 x ATX 24-pin power connector
1 x ATX 8-pin 12V CPU power connector
CPU x 1 / System x 2 FAN connectors
1 x Front panel audio connector
1 x Front panel connector
1 x Chassis intrusion switch connector
3 x USB 2.0 connectors
1 x USB 3.0 connector
1 x Serial connector
1 x Clear CMOS jumper
6 x SATA 6Gb/s connectors
1 x TPM module connector

DIMENSIONES:
ATX Form Factor; 30.5cm(L) x 22.5cm(W)

Incluye: Manual, CD de Drivers y Cables
Garantía: 12 meses
