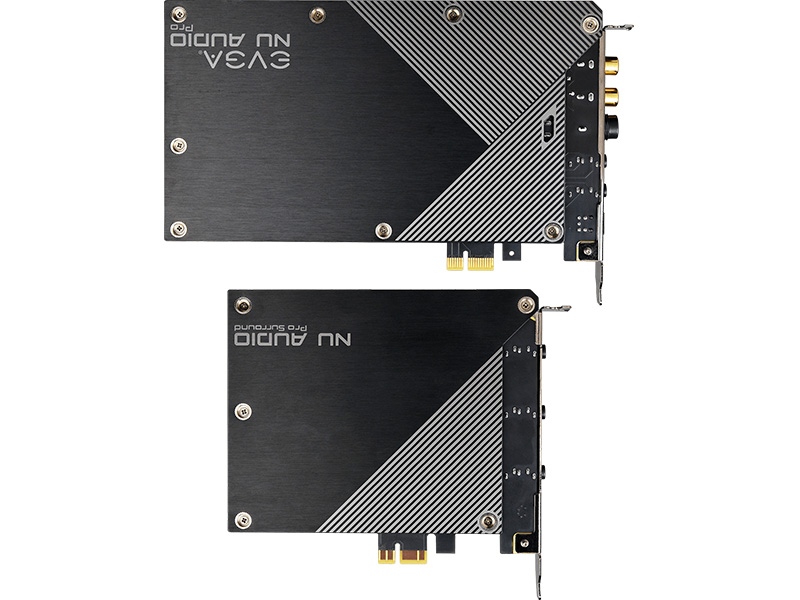

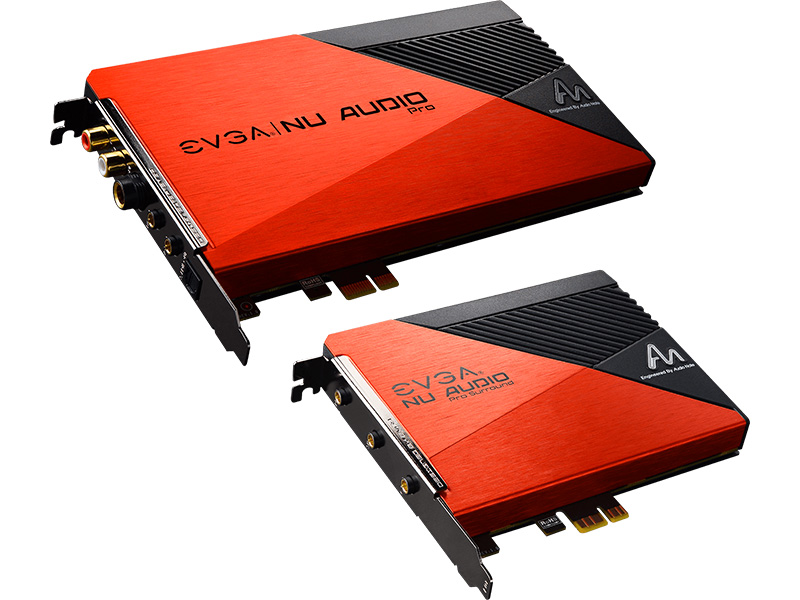

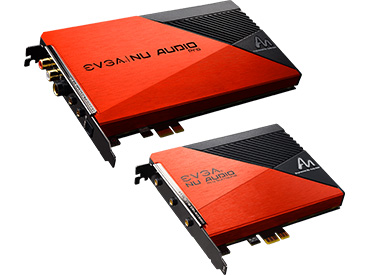

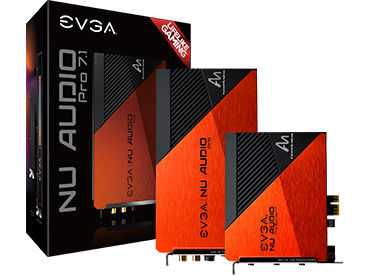

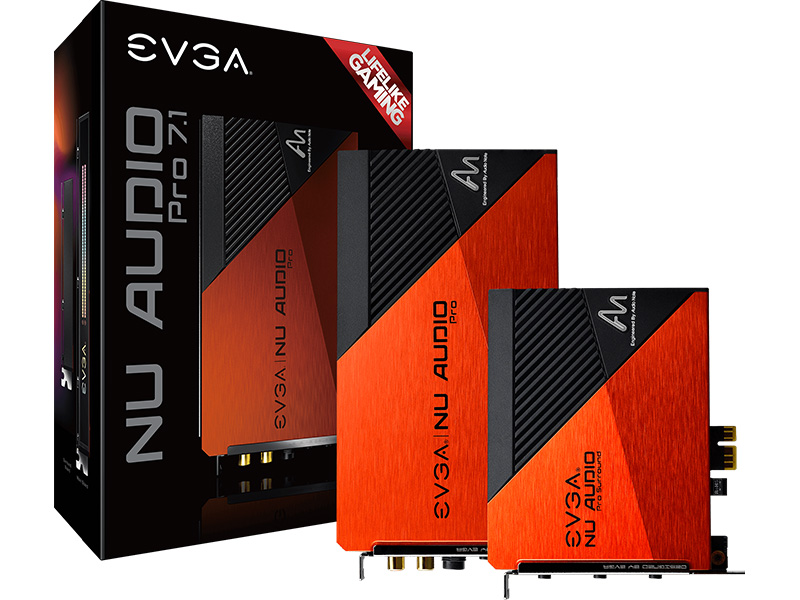

EVGA NU Audio Pro 7.1, 712-P1-AN21-KR, 7.1 Surround, Lifelike Audio, PCIe, RGB LED, Backplate, Designed with Audio Note
P/N: 712-P1-AN21-KR

ESPECIFICACIONES:

Marca: EVGA
Modelo: NU Audio Pro 7.1
Interfaz: PCIe x1 Gen2, mini-DP

Audio DSP:
XMOS xCORE-200
Dynamic Range (DNR):
123dB (Playback)
121dB (Recording)
Playback Format (Analog):
Up to 192kHz, 32bit (7.1/5.1/4.0)
Up to 384kHz, 32bit (2.0)
Recording Format:
Up to 384kHz, 32bit (Line-In)
Up to 192kHz, 24bit (Mic-In)
Premium Components:
DAC - 4x AKM AK4493
ADC (Line-In) - AKM AK5572
ADC (Mic-In) - Cirrus Logic CS5346
OP-AMP (Headphone) - Linear Technology LT1469
OP-AMP (Line Out) - ADI AD8056
OP-AMP (Daughterboard) - 3x ADI OP275
Capacitors - Audio Note Seiryu, Audio Note Standard, AVX F95 Audio, WIMA, Nichicon, Panasonic
Power Connector:
1x SATA Power
Supported OS:
Windows 10 64-bit
Output Configuration:
7.1/5.1/4.0/2.0 Channel (Analog)
5.1 Channel (Digital)
Signal-To-Noise (SNR):
123dB (Playback)
121dB (Recording)
Playback Format (Optical):
Up to 192kHz, 24bit
Headphone Amp:
Yes (16-600ohm)

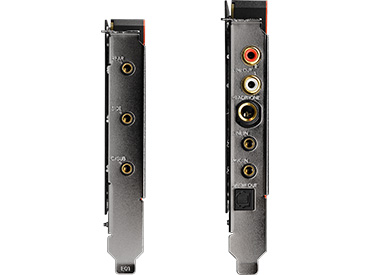

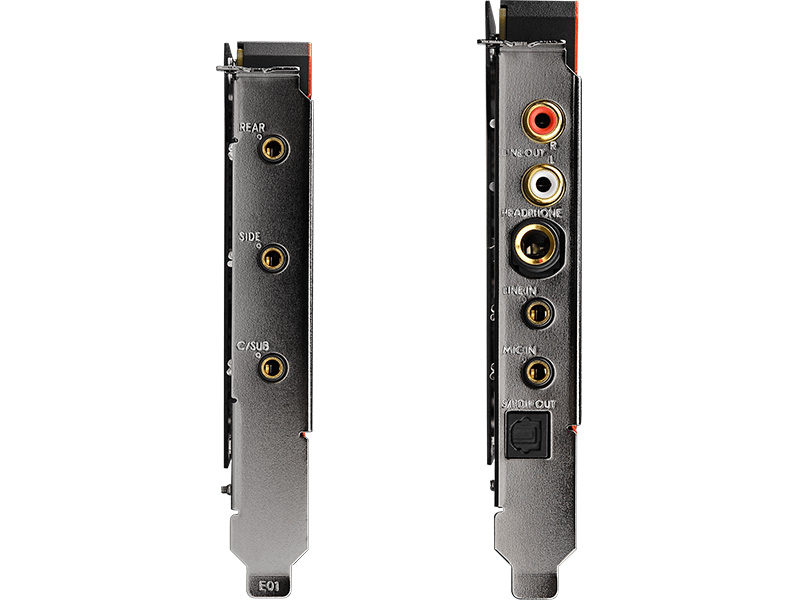

I/O:
Stereo Out (RCA (L/R))
Surround Out (3x 3.5mm (Side L/R, Rear L/R, Center/Sub))
Headphone Out (6.3mm)
Line-In (3.5mm)
Mic-In (3.5mm)
Optical Out (TOSLINK Passthrough)
Switchable OP-AMP:
Headphone, Line-Out, Side, Rear, Center/Sub
Interface:
PCIe x1 Gen2, mini-DP
Backplate Included
RGB Lighting:
RGB Multi-Zone with Audio Reactive Lighting

Garantía: 24 meses
