Gigabyte GeForce RTX™ 3060 WINDFORCE OC 12G
GV-N3060WF2OC-12GD
CARACTERÍSTICAS PRINCIPALES
- Multiprocesadores de Streaming NVIDIA Ampere
- Núcleos RT de 2da Generación
- Núcleos Tensor de 3era Generación
- Powered by GeForce RTX™ 3060
- Integrada con 12GB GDDR6 e interface de memoria de 192-bit
- Sistema de enfriamiento WINDFORCE 2X con ventiladores de giro alterno
- Screen cooling
- Tamaño compacto de 200 mm
- Versión de Hash Rate limitado
CORE CLOCK
- 1792 MHz (Reference Card: 1777 MHz)

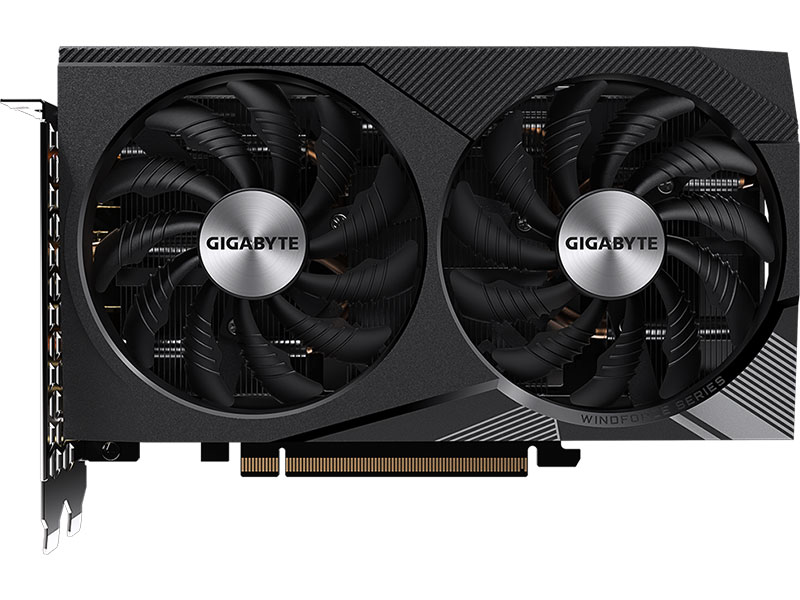

SISTEMA DE REFRIGERACIÓN WINDFORCE 2X
El sistema de refrigeración WINDFORCE 2X cuenta con 2 ventiladores de 90mm unique blade, de giro alterno, 3 composite copper heat pipes direct touch, 3D active fan y Screen cooling que juntos proporcionan una disipación de calor de alta eficiencia
ALTERNATE SPINNING
The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
ESPECIFICACIONES
| Marca | Gigabyte |
| Modelo | GeForce RTX™ 3060 WINDFORCE OC 12G |
| Part Number | GV-N3060WF2OC-12GD |
| Procesador | NVIDIA® GeForce RTX™ 3060 |
| Core Clock | 1792 MHz (Reference Card: 1777 MHz) |
| CUDA® Cores | 3584 |
| Velocidad de Memoria | 15000 MHz |
| Tamaño de Memoria | 12 GB |
| Tipo de Memoria | GDDR6 |
| Ancho de la interfaz de Memoria | 192 bit |
| Ancho de banda de Memoria | 360 GB/s |
| Interfaz de la Placa | PCI-E 4.0 x 16 |
| Resolución Digital Máxima | 7680x4320 |
| Multi-view | 4 |
| Tamaño de la Placa | L=198 W=121 H=39 mm (Ocupa 2 part slots) |
| Forma de PCB | ATX |
| DirectX® | 12 Ultimate |
| OpenGL | 4.6 |
| Fuente Recomendada | 550W |
| Conectores de Alimentación | 1x 8 pin |
| Potencia de la Placa (W) | 170 |

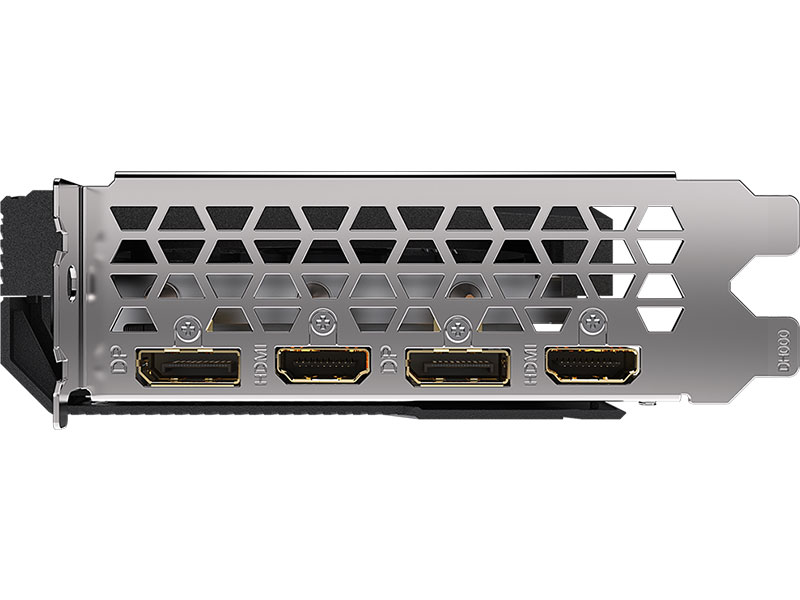

| Conectores de Pantalla | 2 x DisplayPort 1.4a
2 x HDMI™ 2.1 |
| Soporte SLI | N/A |
| Accesorios | Guía Rápida |
Soporte de Tecnologías
| Núcleos RT | 2da Generación |
| Núcleos Tensor | 3era Generación |
| Arquitectura NVIDIA | Ampere |
| Microsoft DirectX® 12 Ultimate | Sí |
| NVIDIA DLSS | Sí |
| NVIDIA Reflex | Sí |
| NVIDIA Broadcast | Sí |
| PCI Express Gen 4 | Sí |
| Resizable BAR | Sí |
| NVIDIA® GeForce Experience™ | Sí |
| NVIDIA Ansel | Sí |
| NVIDIA FreeStyle | Sí |
| NVIDIA ShadowPlay | Sí |
| NVIDIA Highlights | Sí |
| NVIDIA G-SYNC® | Sí |
| Game Ready Drivers | Sí |
| NVIDIA Studio Drivers | Sí |
| NVIDIA Omniverse | Sí |
| NVIDIA GPU Boost™ | Sí |
| NVIDIA NVLink™ (SLI-Ready) | - |
| Vulkan RT API, OpenGL 4.6 | Sí |
| NVIDIA Encoder | 7ma Generación |
| NVIDIA Decoder | 5ta Generación |
| CUDA Capability | 8.6 |
| VR Ready | Sí |
| HDCP | 2.3 |
Garantía: 36 Meses
